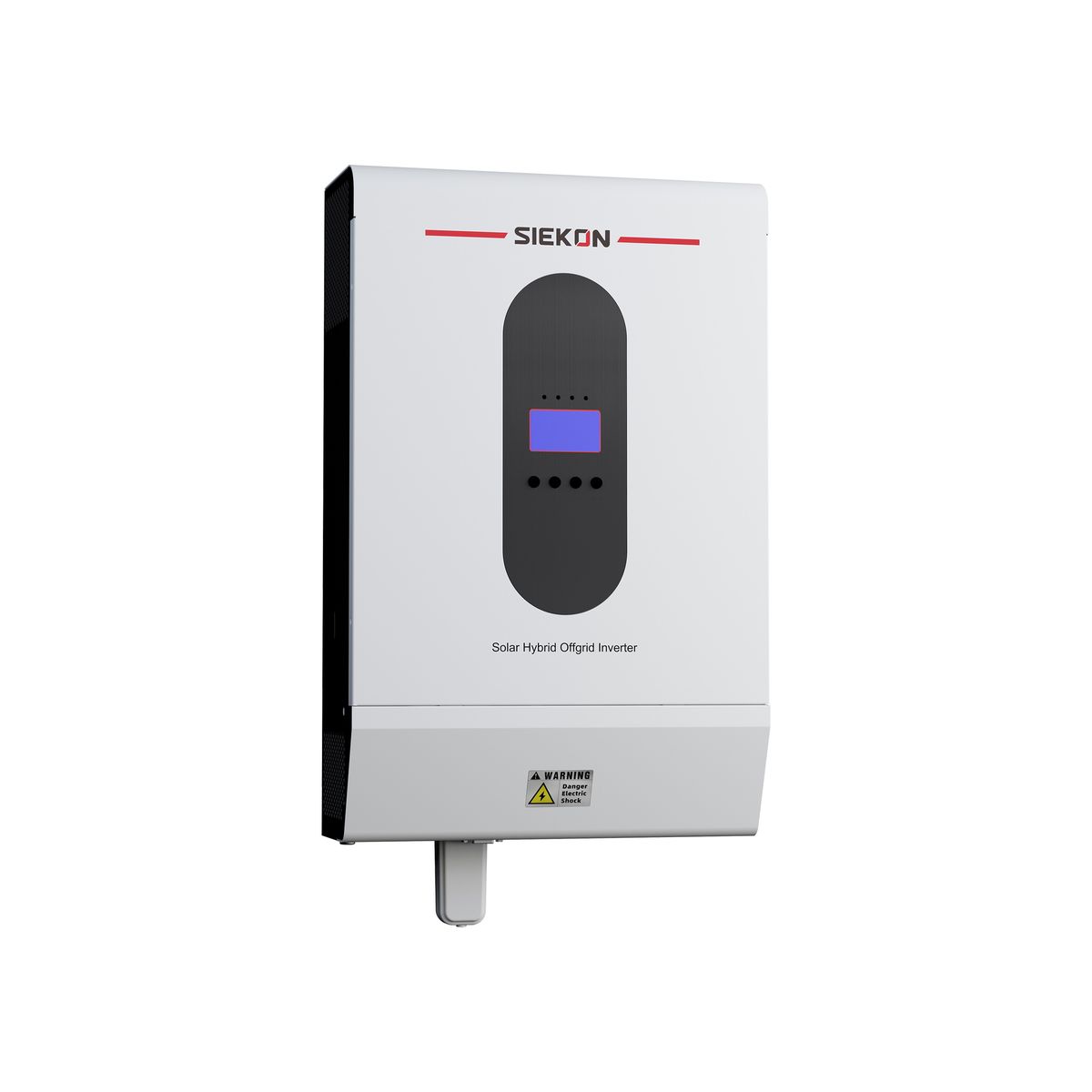

SIEKON 48V 5KW Off-Grid Solar Inverter

Main function of SIEKON 48V 5KW Off-Grid Solar Inverter:
* Convert DC power taken from solar panels or other DC sources such as batteries into the AC power we commonly use in our home and industrial electricity
* The inverter also has protection functions such as overload protection, overvoltage protection and overtemperature protection to ensure stable operation and long life of the equipment.

Description
Model:PV-SO1-5000
Battery Type:Lithium / Lead-Acid
Nominal Battery Voltage (V):48
Max. Continuous Charging Current (A):80
Max. Charge Power (W):4500
Max. Discharge Power (W):5000

PV String Input Data

Max. Input Power (W):5500
Max. Input Voltage (V):500
MPPT Operating Voltage Range (V):120-430
Start-up Voltage (V):150
Nominal Input Voltage (V):300
Number of MPP Trackers:1
Number of Strings per MPPT:1

AC Output Data

Rated Power W :5000
Nominal Output Current (A):21.7
Nominal Output Voltage (V):220/230/240
Nominal Output Freqency (Hz):50Hz / 60Hz
Output THDv (@Linear Load):<3%

Conversion Efficiency

Max. Efficiency:93.6%
MPPT Efficiency:99.9%

Protection

AC Overcurrent Protection:Integrated
AC Short Circuit Protection:Integrated
AC Overvoltage Protection:Integrated
Remote Shutdown:Integrated

Environmental / Ambient Conditions

Operating Temperature Range ( C):0-50
Excess Temperature Behaviour:continuous power reduction (derating)
Relative Humidity:0 to 95 % (climate class 4k6), non-condensing
Installation Altitude above Sea Level:up to 2000 m above sea level
Installation Location:Inside
Cooling Method:Air cooling

Mechanical Data

Dimensions (W × H × D mm):300 x 485 x 120
Weight (kg):9.5 0.5
Protection Level:IP 20
Installation Type:Wall Installation with Wall Bracket

Communications

Display:Integrated data logger:LCD, WLAN + APP
Monitoring Settings:Integrated data logger
Communication with BMS:CAN
Communication with Portal:Wifi

Other Data

Topology:Transformerless
Reliability:Integrated
Manufacturer's Warranty:2 Years

What's in the box
The invert unit x 1
AC input connector x 1
AC output connector x 1
PV input connector x 1
Set screws x 2
User manual x 1
Communication cable x 1
Parallel communication cable x 2
Smart WIFI Dongle(Optional)x 1
