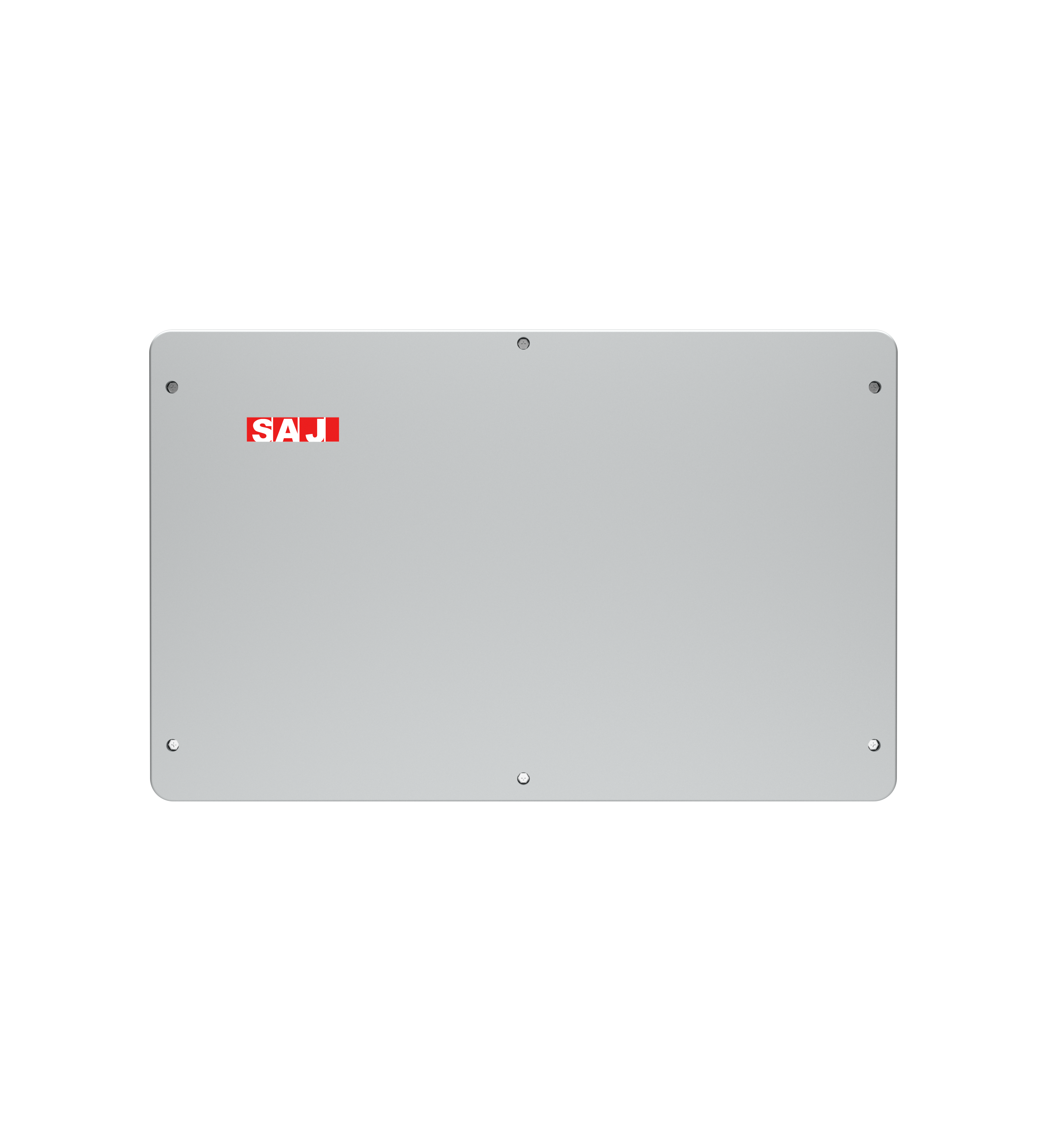

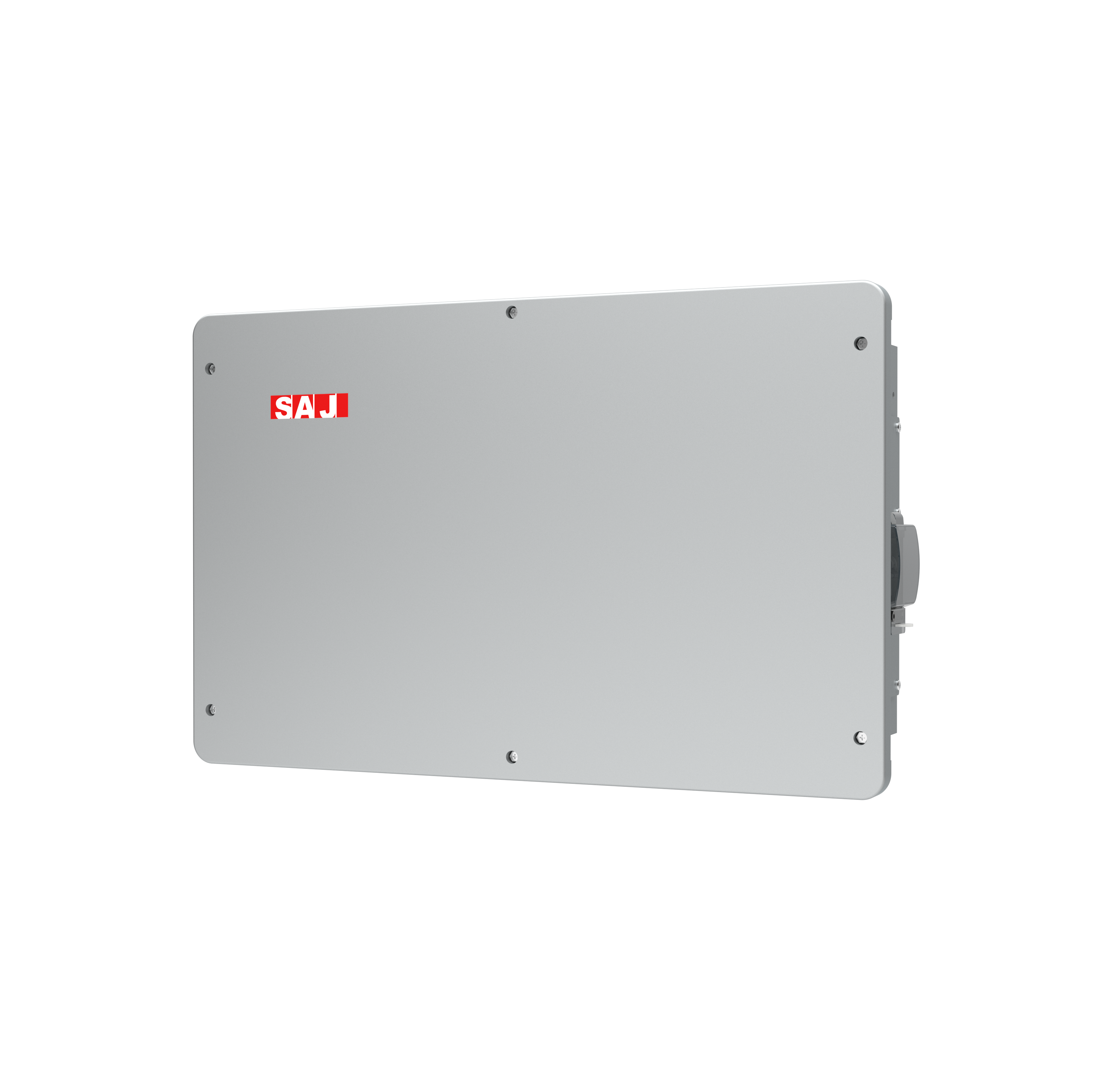

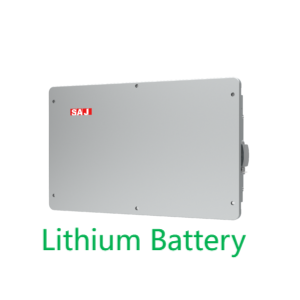

Lithium Battery SAJ 5kw Wall Mounted

MODEL B1-5.1-48

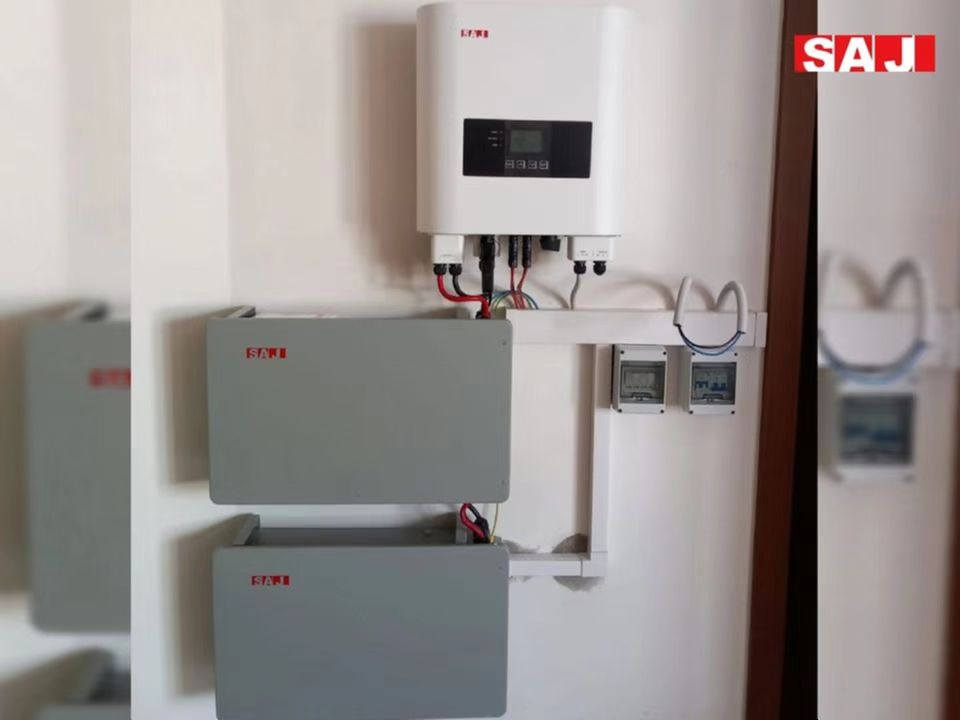

The battery B1 is applied to domestic photovoltaic storage system. The battery is built internally with a battery management system (BMS), which is used to ensure efficiency of the battery and to avoid phenomena of overcharge or over-discharge. The battery employs modular design for easy installation and wiring, and can be used by up to 8 parallel devices.This is a wall mounted lithium battery, easy to install, use and mantainace.

SAJ 5kw Lithium Battery Products features:

1. Modular Design
2. Excellent Protection
3. Easy Installation
4. Safest Chemistry
5. Long Lifespan

Specification:

SAJ 5kw Lithium Battery Electrical Parameters

Total Energy Capacity [kWh] 5.12
Usable Capacity [kWh] 4.6
Rated Voltage [V] 51.2
Voltage Range [V] 42~58.4
Depth of Discharge [DOD] ≤ 90%
Max. Charge Current [A] 60
Max. Discharge Current [A] 60

Physical Parameters

Battery Type LiFePO4
Communication CAN
Operating Temperature Range 0°C~50°C
Cooling Method Natural convection
Ambient Humidity 0～95% non-condensing
Ingress Protection IP65
Dimensions [H*W*D][mm] 410*650*186
Weight [kg] 48
Warranty [Year] 5/10
Applicable Standard IEC 62619(Cell Pack), EN 62477-1, EN 61000-6-1/2/3/4, UN38.3

What’s in the box
1. Battery expansion kit 1 unit 2. Hanging plate 1PCS 3. Accessory package 1 PCS 4. Power cable (BAT+) 1 PCS in accessory kit 5. Power cable (BAT-) 1 PCS in accessory kit 6. RJ45 communication cable 1 PCS in accessory package 7. Cross recessed hexagon head bolts triple combination (M6x12) 1 PCS accessory package 8. Cross recessed small pan head screw triple combination (M5x10) 4 PCS accessories package 9. Screw holder 6 PCS accessories package 10. Large spacer 6 PCS accessories package 11. Hexagon head wood screws M6x50 (environmental protection color zinc) 6 PCS accessories in the package 12. Product instruction manual 1 PCS 13. Moisture-proof beads 1 package
